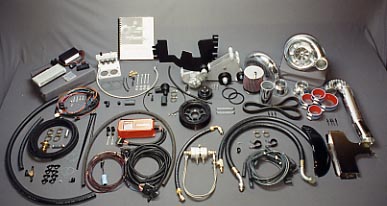

BASIC COMPONENTS FOR STAGE 1 LT1/LT4
1992-96 CORVETTE SUPERCHARGING SYSTEM

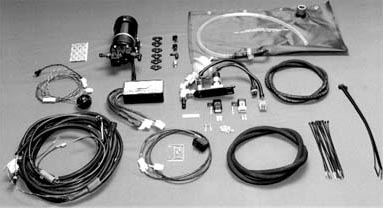

GEN-IV DELUX GASEOUS INTERCOOLING TM SYSTEM
1992-96 CORVETTE SUPERCHARGING SYSTEM

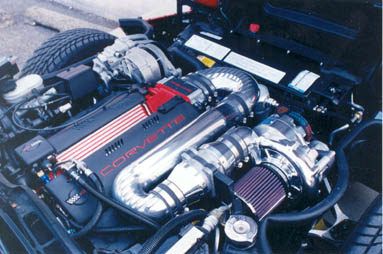

TYPICAL 1996 LT1/LT4 SUPERCHARGING SYSTEM

Click below to view actual time slips

Time Slip #1
1992 LT1 Corvette
Blueprinted "350" engine
Stock camshaft - Stock Fuel Injectors
CARROLL SUPERCHARGING SYSTEM

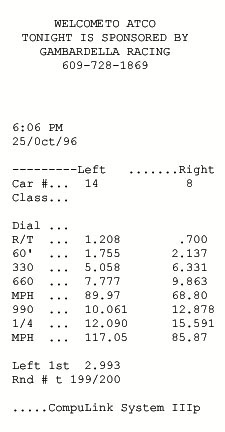

Time Slip #2
1996 LT1 Corvette
Completely Stock Engine - 3:54 Rear
CARROLL SUPERCHARGING SYSTEM

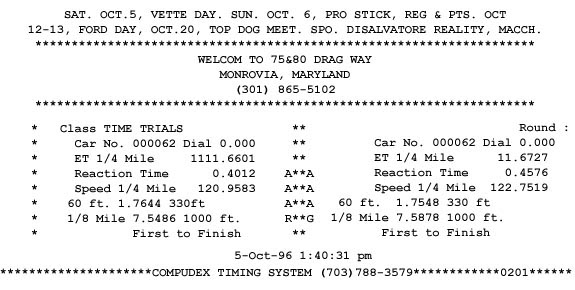

Time Slip #3
1992 LT1 Corvette
"383" Engine - 3.07:1 Rear End
Stork Torque Converter
CARROLL SUPERCHARGING SYSTEM


LT1/LT4 STAGES
LT1 STAGE I
425 HP @ 5750 RPM w/8 Lbs Boost Pressure

LT1 STAGE II
445 HP @ 5750 RPM w/8 Lbs Boost Pressure

LT1 STAGE III
475 HP @ 6000 RPM w/10 Lbs Boost Pressure

LT1 STAGE IV
500 HP @ 6000 RPM w/12 Lbs Boost Pressure

LT1 STAGE V
550 HP @ 6250 RPM w/12 Lbs Boost Pressure

LT1 STAGE VI
600 HP @ 6400 RPM w/12 Lbs Boost Pressure

LT4 STAGE I
460 HP @ 6250 RPM w/8 Lbs Boost Pressure


LT1/LT4 STAGE PRICING

Download LT1/LT4 CATALOG in Adobe Acrobat format
